TRACTOR, combine & agricultural parts
FARM CLEVISES
| CODE | A | B | C | D |
|---|---|---|---|---|
| HFC 01 | 3/8" | 23/32" | 1-7/16" | 7/16" |
| HFC 02 | 7/16" | 3/4" | 1-11/16" | 1/2" |
| HFC 03 | 1/2" | 13/16" | 1-15/16" | 5/8" |
| HFC 04 | 3/4" | 1-1/4" | 3" | 7/8" |

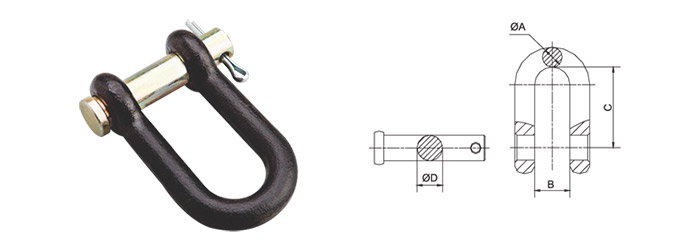

UTILITY CLEVISES
| CODE | A | B | C | D |
|---|---|---|---|---|
| HUC 01 | 3/8" | 21/32" | 1-1/4" | 7/16" |
| HUC 02 | 1/4" | 7/16" | 1" | 5/16" |

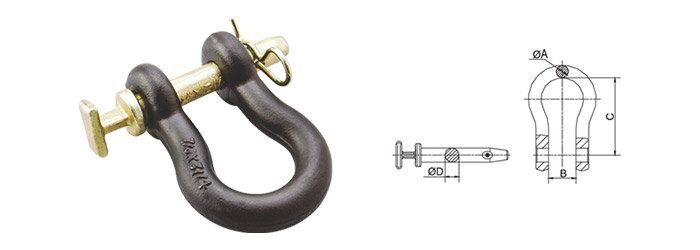

STRAIGHT CLEVISES
| CODE | A | B | C | D |
|---|---|---|---|---|
| HSC 01 | 3/4" | 1-5/16" | 3-3/4" | 5/8" |
| HSC 02 | 7/8" | 1-5/16" | 3-1/4" | 3/4" |
| HSC 03 | 7/8" | 1-5/16" | 4-1/4" | 3/4" |
| HSC 04 | 1" | 2-1/8" | 5-5/16" | 1" |
DRAWBAR GRAB HOOK FOR ALL TRACTORS
For all tractor draw bars up to 44mm (1-5/8”) thick;
to use with 8mm (5/16”) to 12.5mm (½") chain;
Grab Hook pinto fit 19mm (3/4”) diameter;
Working load - 4100 Kgs (9000 Lbs.)

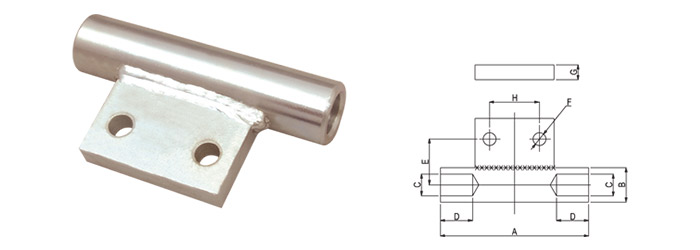

TURN BUCKLE (WELDED)
| CODE | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| HTBP 01 | 150 | 35 | 22 | 32.5 | 46 | 13 | 15 | 50 |

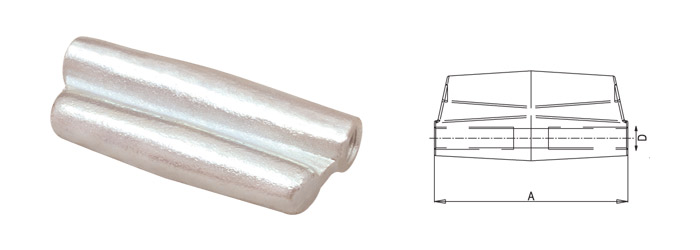

TURN BUCKLE (CASTED)
| CODE | THREAD (D) | LENGTH (A) |
|---|---|---|
| HTBC 01 | M16X2 | 140 |
| HTBC 02 | M20X2.5 | 140 |
| HTBC 03 | M16X2 | 180 |
