TRACTOR, combine & agricultural parts

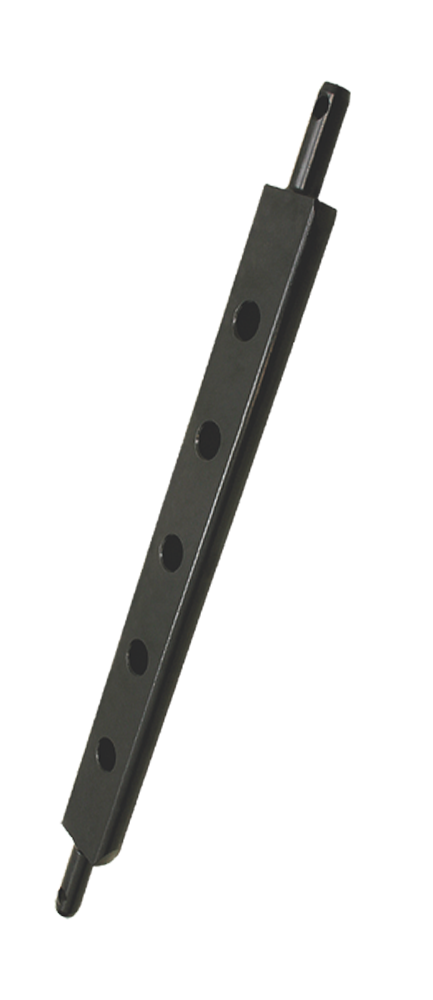

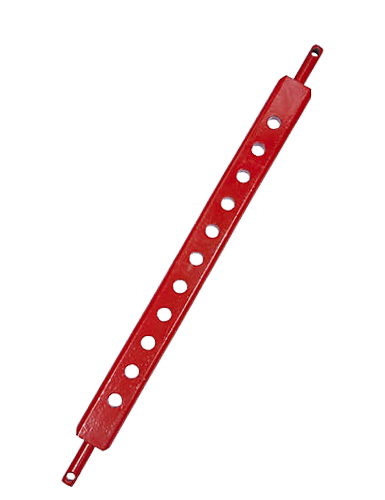

DRAWBAR (CROSS SECTION - 63 X 25MM)

CODE	A	B	C	D	E	F	NO. OF HOLES
HDB01	774	57	75	51	22	19	11
HDB02	775	57.5	75	51	22	22.4	11
HDB03	774	57	76.2	63.5	22.2	19.5	9
HDB04	613	51	84.5	57	22	22.2	7
HDB05	610	51	83	57	22	22	7
HDB06	770	50	105	76.6	22	22	7
HDB07	420	57	66	58	22	22	4
HDB08	421	58	61	61	22	22	4
HDB09	774	57	75	51	22	19	11
HDB10	775	57	114	54	22	22	9
HDB11	610	51	74	60	16	16	7
HDB12	580	50	80	80	22	22	5

CODE	A	B	C	D	E	F	NO. OF HOLES
HDB01	930	55	110	10	28	28	7
HDB02	750	55	80	80	28	25.4	7
HDB03	890	64	126	85	28	29	7
HDB04	940	60	152	86	28.4	28.4	7
HDB05	981	60	154.5	92	28.4	28.4	7
HDB06	861	60.5	140	15	28.4	27	5
HDB07	960	55	100	65	28	26	11
HDB08	940	55	110	110	28	30(4) / 26(3)	7
HDB09	800	58	104.5	95	28.5	20	6
HDB10	935	55	87.5	65	28	22	11
HDB11	932	60	76	55	28	19	13
HDB12	760	60	60	52	28.6	19	11
HDB13	940	60	76	55.6	28	19	13
HDB14	940	60	76	55.6	28	22.4	13
HDB15	876	50	100	96	28	28	7
HDB16	930	55	85	109	28	26	7
HDB17	933	55	86.5	65	28	22	11
HDB18	960	55	100	65	28	22	11
HDB19	890	55	124	886	28	28	7
HDB20	932	60	86	64	28	28	11
HDB21	945	60	92.5	80	28	22	9
HDB22	933	55	86.5	65	28	22	11
HDB23	932	61.7	49.7	86.2	28	26	7
HDB24	945	60	92.5	80	28	33	9
HDB25	940	60	85	110	28	29	7
HDB26	925	50	172.5	80	28.4	25	7
HDB27	962	51	110	80	28.4	33	9
HDB28	910	55	80	80	28	25.4	9
HDB29	960	62	78	68	28	28	11
HDB30	980	55	87	87	28	25.4	9
HDB31	800	70	70	65	28	28.4	9
HDB32	933	60	81.5	65	28	28.4	11

CODE	A	B	C	D	E	F	NO. OF HOLES
HDB01	620	50	72	47	28	28	9
HDB02	505	52.5	68	66	22	19.5	5
HDB03	800	58	86	64	22	22	9
HDB04	774	57	75	51	22	19	11
HDB05	720	58	70	58	22	22	9
HDB06	614	51	85	57	22	19	7
HDB07	960	55	100	65	28	22	11
HDB08	764	52	60	54	22	22	11
HDB09	765	53	60	54	22	20	11
HDB10	780	60	60	54	28	20	11
HDB11	758	49	114	54	22	20	9
HDB12	780	60	114	54	28	20	9
HDB13	762	51	114	54	22	20	9
HDB14	770	55	110	55	22	20	9
HDB15	770	55	110	55	28	20	9
HDB16	648	49	113	54	22	20	7
HDB17	440	55	110	55	22	20	3
HDB18	726	58	80	75	22	22	7
HDB19	800	70	70	65	28	22	9
HDB20	540	70	70	65	28	22	5
HDB21	570	85	70	65	22	22	5
HDB22	650	65	60	50	22	26	9
HDB23	800	58	82	65	22	22	9
HDB24	800	70	114	54	28	22	9
HDB25	766	60	60	52.6	28	20	11
HDB26	937	60	88.5	80	28	26	9
HDB27	680	51	115	58	22	20	7
HDB28	683	49	82.5	70	22	20	7
HDB29	510	53	94	54	22	20	5
HDB30	540	55	75	70	28	20	5
HDB31	962	60	181	80	28	28.2	7
HDB32	766	53	60	54	22	20	11
HDB33	920	60	100	60	28	22	11
HDB34	872	61	159	54	28	20	9
HDB35	800	58	82	65	22	22	9
HDB36	800	70	70	65	28	22	9
HDB37	620	50	72	47	22	22	9
HDB38	622	50	71	47.5	22	19	9
HDB39	780	60	60	54	28	20	11
HDB40	780	60	60	54	22	20	11
HDB41	780	60	60	54	28	20	11
HDB42	656	53	113	54	22	20	7
HDB43	962	60	181	80	28	20	7
HDB44	962	60	181	80	28	28	7
HDB45	796	57.5	101	60	22	22.2	9
HDB46	800	70	70	65	28	22	9
HDB47	800	52	78	54	22	22	11
HDB48	800	60	70	54	28.4	22	11
HDB49	750	59	64	64	22	19.5	9
HDB50	800	70	70	65	28	22	9
HDB51	774	57	75	51	22	22	11
HDB52	800	58	126	54	22	22	9
HDB53	510	55	35	55	22	20	7
