TRACTOR, combine & agricultural parts

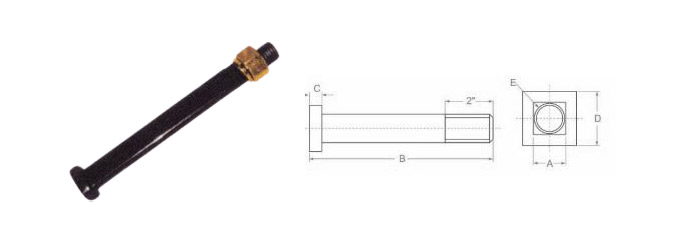

Disk Harrow Axle
| CODE | Dim. A |
Dim. B |
Dim. C |
Dim. D |
Thread E |
|---|---|---|---|---|---|
| HDHA01 | 7/8" | 22" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA02 | 7/8" | 22-1/2" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA03 | 7/8" | 25-1/4" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA04 | 7/8" | 26" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA05 | 7/8" | 30-1/2" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA06 | 7/8" | 33" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA07 | 7/8" | 39-1/8" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA08 | 7/8" | 40-1/4" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA09 | 7/8" | 41-3/4" | 1/2" | 1-3/8" | 7/8" UNC |
| HDHA10 | 1" | 19" | 1/2" | 1-1/2" | 1" UNC |
| HDHA11 | 1" | 26-1/2" | 1/2" | 1-1/2" | 1" UNC |
| HDHA12 | 1" | 34" | 1/2" | 1-1/2" | 1" UNC |
| HDHA13 | 1-1/8" | 12" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA14 | 1-1/8" | 26-1/4" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA15 | 1-1/8" | 22" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA16 | 1-1/8" | 31" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA17 | 1-1/8" | 31-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA18 | 1-1/8" | 34" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA19 | 1-1/8" | 40" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA20 | 1-1/8" | 40-1/4" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA21 | 1-1/8" | 42" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA22 | 1-1/8" | 49-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA23 | 1-1/8" | 56-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA24 | 1-1/8" | 58-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA25 | 1-1/8" | 64" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA26 | 1-1/8" | 67-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA27 | 1-1/8" | 71-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA28 | 1-1/8" | 76-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA29 | 1-1/8" | 79" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA30 | 1-1/8" | 85-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA31 | 1-1/8" | 94-1/2" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA32 | 1-1/8" | 95-11/16" | 1/2" | 1-5/8" | 1-1/8" UNC |
| HDHA33 | 1-1/8" | 104-11/16" | 1/2" | 1-5/8" | 1-1/8" UNC |

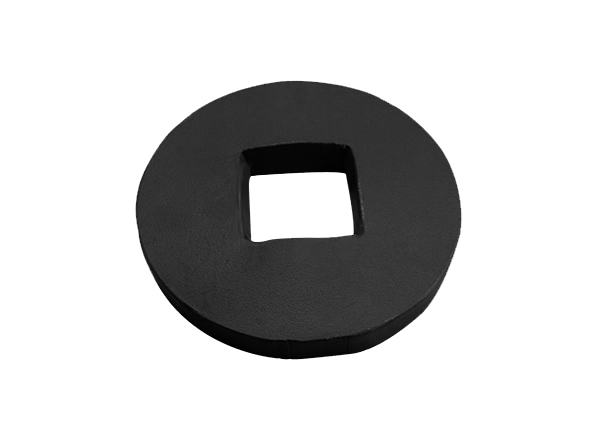

AXLE PLATE
| CODE | DIA | AXLE SIZE |
|---|---|---|
| HAP 015 | 137 | 40X40 |
| HAP 020 | 90 | 40X40 |
| HAP 021 | 53 | 30X30 |
| HAP 022 | 148 | 40X40 |
| HAP 023 | 148 | 50.8X50.8 |

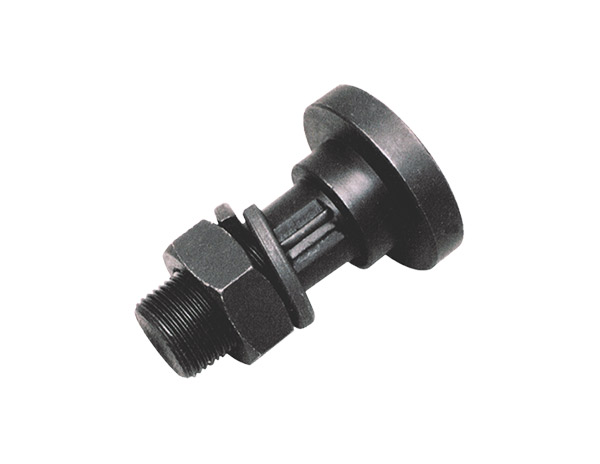

BLADE BOLT WITH NUT & WASHER
For rotary cutter
- Material :EN - 15 Steel / Boron Steel (15B41)
- Heat Treated
- We can manufacture different sizes & specifications of blade bolts on demand.
| CODE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| HB01 | 38 | 28.4 | 14 | 25 | 1 1/8" 12 TPI | 90 | 62 |
| HB01 | 38 | 28.4 | 14 | 25 | 1 1/8" 12 TPI | 78 | 63 |
