TRACTOR, combine & agricultural parts

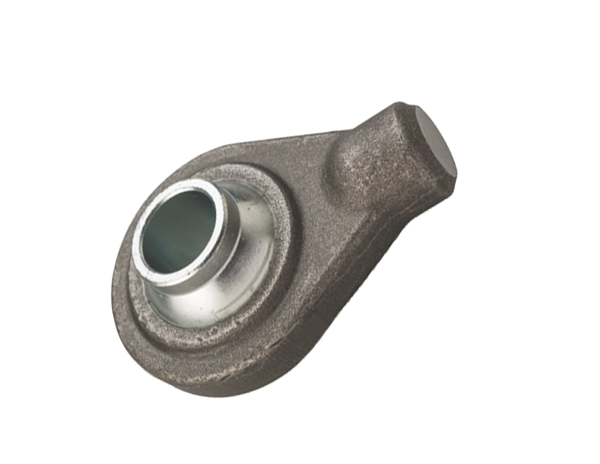

Weld on End

CODE	A	B	C	D	E	F
HWOE 195455	54	55	25.4	19	44
HWOE 195550 A	55	50	25	19	30
HWOE 195550 B	55	50	25	19	44
HWOE 205550	55	50	25	20	44
HWOE 257673	76	73	30	25.4	51
HWOE 259085	90	85	40	25.4	51
HWOE 309085	90	85	40	30	51
HWOE 329085 A	90	85	40	32	51
HWOE 329085 B	90	85	40	32	51	M27X2
HWOE 257570	75	70	31	25.4	51

CODE	A	B	C	D	E
HWOE 196250	62	50	26	19	35
HWOE 226250	62	50	26	22.1	35
HWOE 196258	62	58	34	19	44
HWOE 206258	62	58	34	20	44
HWOE 196260	62	60	34	19	44
HWOE 206260	62	60	34	20	44
HWOE 226260	62	60	34	22.1	44
HWOE 197270	72	70	45	19	51
HWOE 227270	72	70	45	22.1	51
HWOE 257270	72	70	45	25.4	51
HWOE 307270	72	70	45	30	51
HWOE 197570	75	70	38	19	51
HWOE 227565	75	65	38	22.1	51
HWOE 257565 A	75	65	38	25.4	40
HWOE 257565B	75	65	38	25.4	51
HWOE 307565	75	65	38	30	51
HWOE 258365	83	65	50	25.4	51
HWOE 308365 A	83	65	50	30	42
HWOE 308365 B	83	65	50	30	55

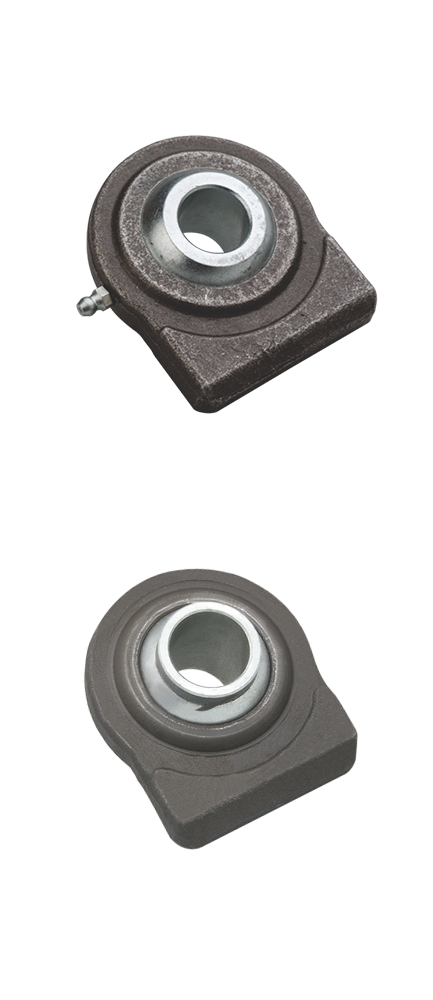

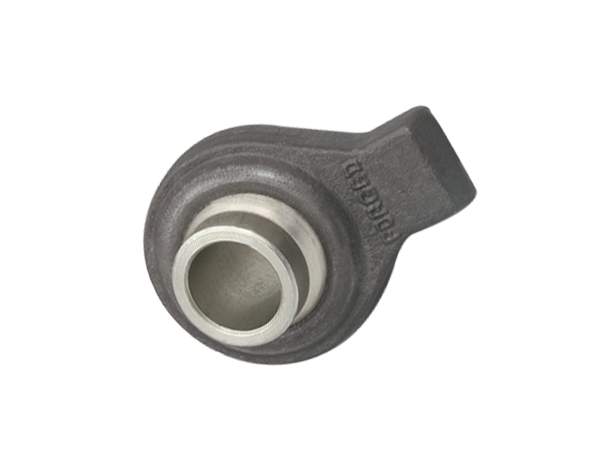

WELD ON NUT

GREASE NIPPLE CAN BE PROVIDED (OPTIONAL)

CODE	A	B	C	D	E	F
HWOE 328365	83	65	50	32	51
HWOE 358365 A	83	65	50	35	35
HWOE 358365 B	83	65	50	35	55
HWOE 198570	85	70	50	19	51
HWOE 228570 A	85	70	50	22.1	51
HWOE 228570 B	85	70	50	22.1	51	M27X2
HWOE 258570 A	85	70	50	25.4	51
HWOE 258570 B	85	70	50	25.4	51	M27X2
HWOE 308570 A	85	70	50	30	51
HWOE 308570 B	85	70	50	30	51	M27X2
HWOE 309265 A	92	65	50	30	42
HWOE 309265 B	92	65	50	30	59
HWOE 329265	92	65	50	32	51
HWOE 359265	92	65	50	35	35
HWOE 4010860	108	60	58	40	75
HWOE 4510860	108	60	58	45	75
HWOE 5010860	108	60	58	50	75
HWOE 4010885 A	108	85	60	40	75
HWOE 4010885 B	108	85	60	40	75	M38X2
HWOE 4510885 A	108	85	60	45	75
HWOE 4510885 B	108	85	60	45	75	M38X2
HWOE 5010885 A	108	85	60	50	75
HWOE 5010885 B	108	85	60	50	75	M38X2

CODE	A	B	C	D	E
HWOE 195750	57	50.8	28.5	19	44
HWOE 196234	62	34	30	19	44
HWOE 206234	62	34	30	20	44
HWOE 226234	62	34	30	22.1	44
HWOE 256260	62	60	30	25.4	51

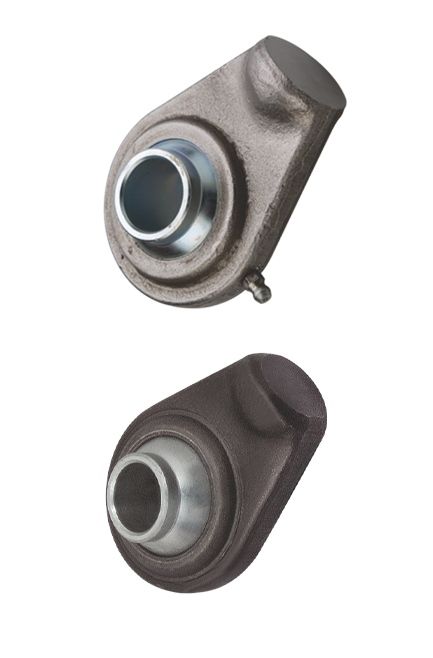

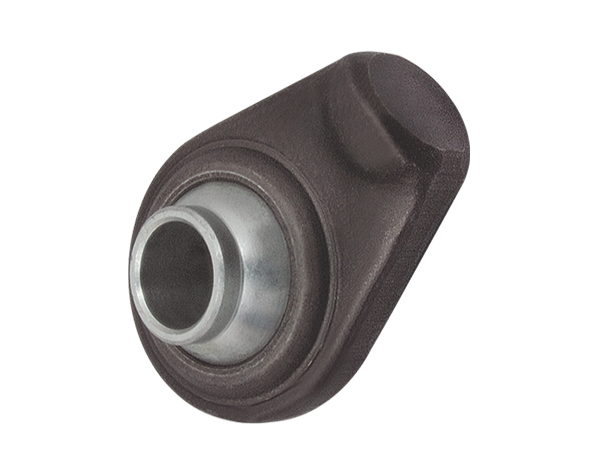

WELD ON END

GREASE NIPPLE CAN BE PROVIDED (OPTIONAL)

CODE	A	B	C	D	E
HWOE 164626	46	26	30	16	20
HWOE 164660	46	60	30	16	20
HWOE 186543	65	43	50	18	35
HWOE 196543	65	43	50	19	35
HWOE 226543	65	43	50	22.1	35
HWOE 226890 A	68	90	50	22.1	35
HWOE 226890 B	68	90	60	22.1	35
HWOE 227650	76	50	70	22.1	35
HWOE 257650 A	76	50	70	25.4	35
HWOE 257650 B	76	50	70	25.4	35
HWOE 287650 A	76	50	70	28.4	35
HWOE 287650 B	76	50	70	28.4	35
HWOE 257880	78	80	70	25.4	38
HWOE 287880	78	80	70	28.4	38
HWOE 228065 A	80	65	70	22/28	45
HWOE 228065 B	80	65	70	22/28	45
HWOE 258065	80	65	70	25.4	45
HWOE 288065 A	80	65	70	28.4	45
HWOE 288065 B	80	65	70	28.4	45
HWOE 258080	80	80	70	25.4	38
HWOE 288080 A	80	80	70	28.4	38
HWOE 288080 B	80	80	70	28.4	45
HWOE 228355	83	55	70	22.1	35
HWOE 258355	83	55	70	25.4	35
HWOE 288355 A	83	55	70	28.4	35
HWOE 288355B	83	55	70	28.4	45
HWOE 288075	80	75	79	28.4	45
HWOE 289665	96	65	70	28.4	45
HWOE 309665	96	65	70	30	45
HWOE 329665	96	65	70	32	45
HWOE 349665	96	65	70	34	45
HWOE 2810865	108	65	80	28.4	45
HWOE 3710865	108	65	80	37	45
HWOE 3810865	108	65	80	38	45

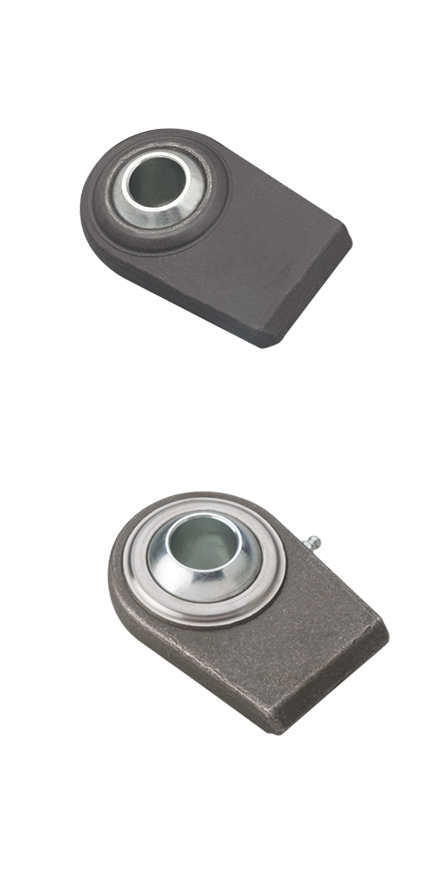

WELD ON END

CODE	A	B	C	D	E
HWOE 195250	52	50	52	19	44
HWOE 196750	67	50	60	19	35
HWOE 226750 A	67	50	60	22.1	35
HWOE 226750 B	67	50	56	22.1	35
HWOE 226770	67	70	60	22.1	35
HWOE 226775	67	75	58	22.1	35
HWOE 288255	82	55	70	28.4	45
HWOE 258379	83	79	70	25.4	38
HWOE 288379	83	79	70	28.4	38
HWOE 288580 A	85	80	70	28.4	45
HWOE 288580 B	85	80	70	28.4	35
HWOE 228580	85	80	70	22/28	45
HWOE 289486	94	86	94	28.4	45
HWOE 389486	94	86	94	38	45
HWOE 2810083	100	83	100	28.4	45
HWOE 3710083	100	83	100	37	45
HWOE 3810083	100	83	100	38	45

CODE	A	B	C	D	E
HWOE 258072	80	72	75	25.4	44
HWOE 288072	80	72	75	28.4	44

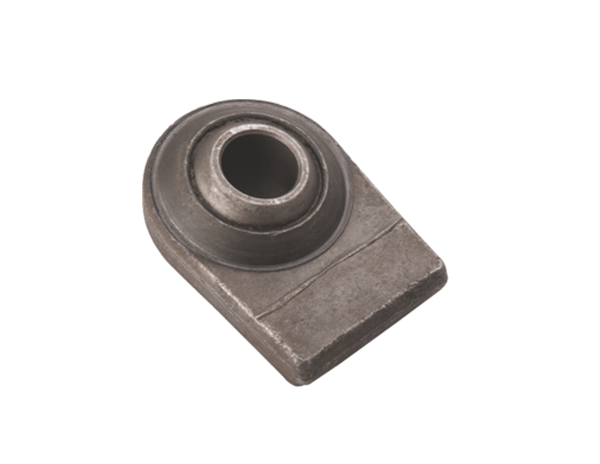

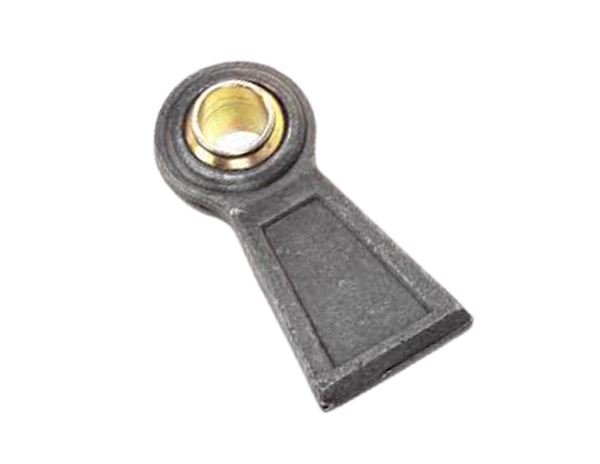

WELD ON END TYPES (URSUS)

CODE	A	B	C	D	E
HWOE 287140	71	40	70	28.4	45
