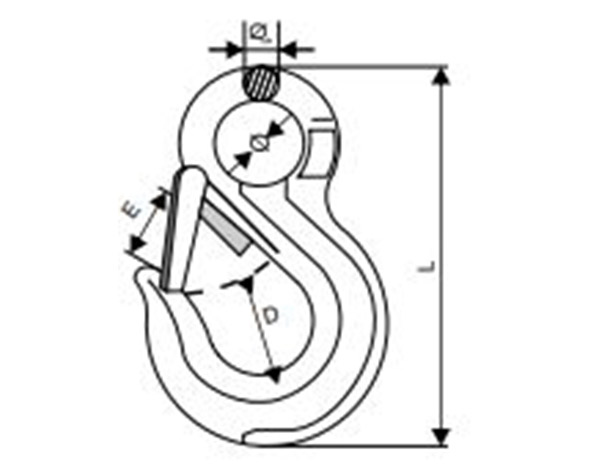

EYE HOOK

WEIGHT /KG	WLL/T	B.L/T	O1	E	D	O	L
0.3	1.12	4.48	9	24	21	20	108
0.4	2.0	8	11	30	26	25	133
0.9	3.15	12.6	15	34	39	38	167
1.7	5.3	21.2	19	39	54	43	213
3.2	8	32	23	46	64	50	255
5.8	12.5	50	24	40	80	62	305
8.5	15	60	32	71	80	62	348
13	21.2	84.8	35	81	82	64	394
17	31.5	126	37	102	112	88	480

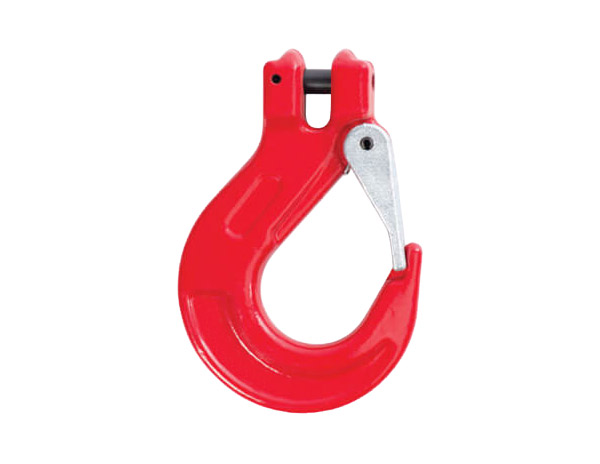

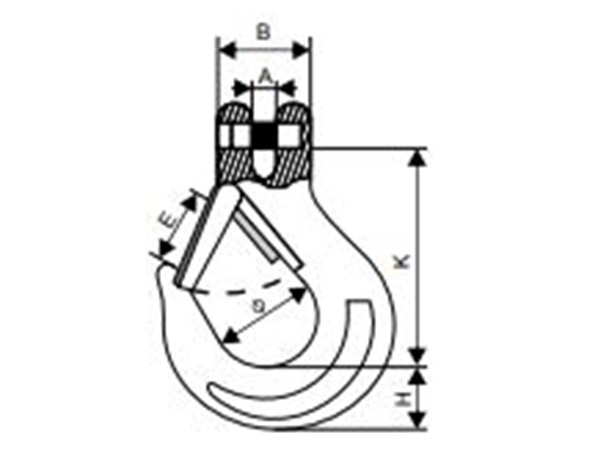

CLEVIS HOOK

WEIGHT /KG	WLL/T	B.L/T	A	B	O	H	K	E
0.32	1.12	4.48	8	32	35	23	76	26
0.52	2	8	9.5	37	37	32.5	85.5	29
1.05	3.15	12.6	13	49	46	35	104	39
2	5.3	21.2	16.5	56.5	56	42.5	128	47
3.7	8	32	21.5	70.5	60	54	150	55
6	12.5	50	24	77	79	58	180	61
10.4	15	60	27	91	101	62	213	72
14.5	21.2	84.8	30	117	115	75	250	85
27	31.5	126	35	150	140	88	317	106

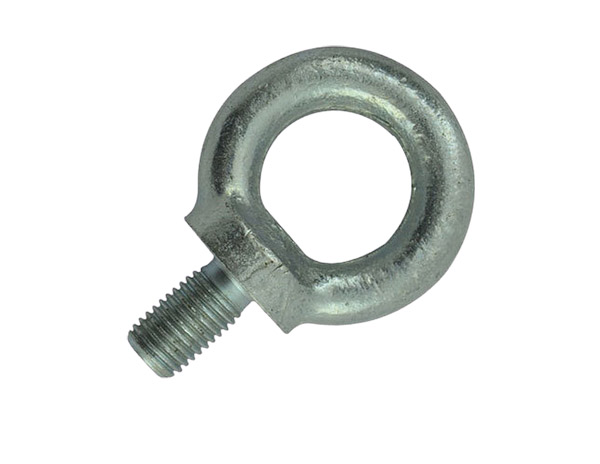

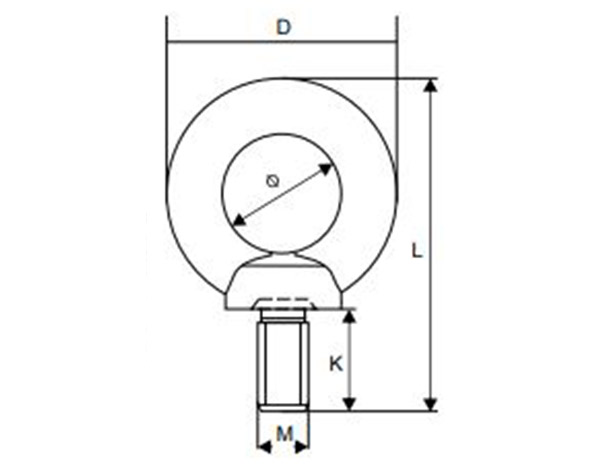

EYE BOLT

SIZE	WEIGHT /KG	WLL/T(5:1)	FIELD4	D	K	O	L
		WLL 45°	VERTICAL LOAD
M12	0.18	0.24	0.34	54	22	30	75
M14	0.28	0.32	0.46	63	28	35	89.5
M16	0.285	0.5	0.7	63	28	35	90
M18	0.42	0.65	0.83	72	30	40	101
M20	0.45	0.83	1.2	72	30	40	101
M22	0.67	1.05	1.5	81	35	45	115.5
M24	0.87	1027	1.8	90	38	50	128
M27	0.88	1.83	2.5	90	38	50	128
M30	1.66	2.6	3.6	108	45	60	154
M33	1.72	3.2	4.5	108	45	60	154
M36	2.65	3.7	5.1	126	55	70	183
M39	2.8	4.3	6	126	55	70	183
M42	4.03	5	7	144	65	80	212
M45	4.25	5.5	7.5	144	65	80	212
M48	6.38	6.1	8.6	166	70	90	238
M52	6.6	7.3	9	166	70	90	238
M56	8.8	8.3	11	184	80	100	267
M64	12.4	11	16	206	90	110	293
