Manufacturer and Exporter
Harsh Enterprises
TRACTOR, combine & agricultural parts

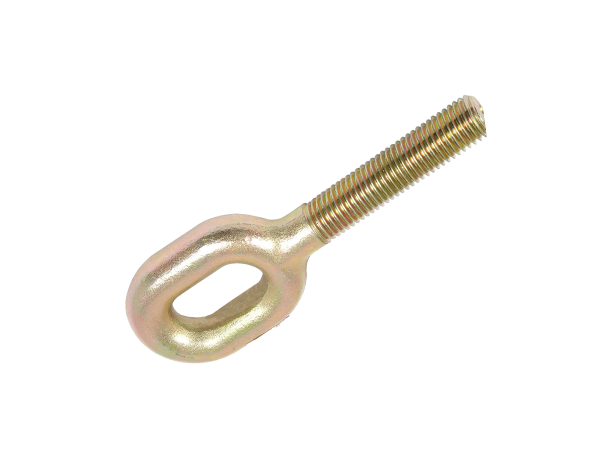

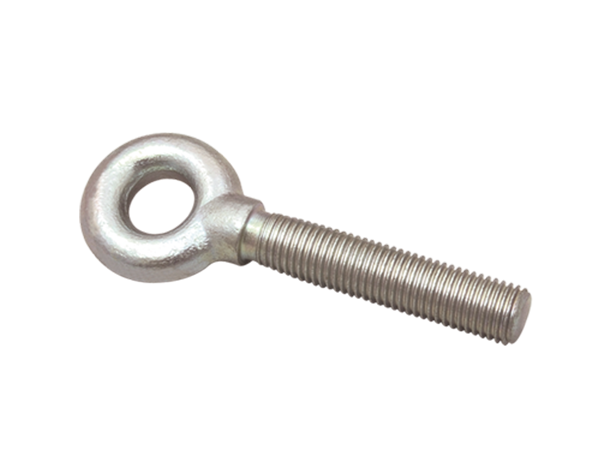

STABILIZER HEADS
| CODE | d | L | D | d1 |
|---|---|---|---|---|
| HSH16 | M16X2 | 70 | 46 | 18 |
| HSH20 | M20X2.5 | 85 | 46 | 18 |
| * Available in Right & Left Hand Thread | ||||
| CODE | d | L | D | d1 |
|---|---|---|---|---|
| HSH 18 | M18X2.5 | 70 | 39 | 15 |
| HSH 20 | M20X2.5 | 75 | 39 | 15 |
| HSH 22 | M22X2.5 | 80 | 39 | 15 |
| HSH 16 | M16X2 | 70 | 39 | 15 |
| HSH 24 | M24X2.5 | 66 | 55 | 25 |
| * Available in Right & Left Hand Thread | ||||

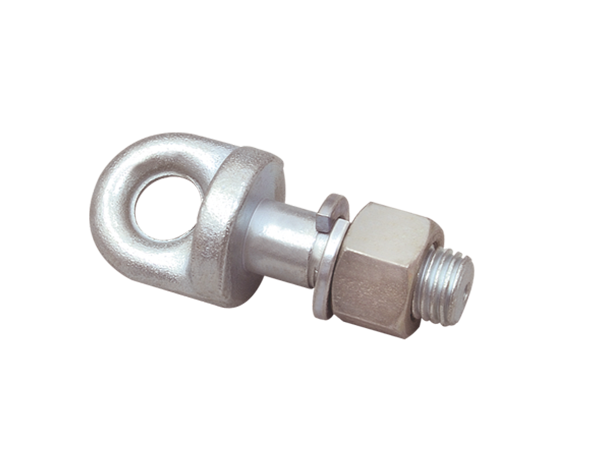

EYE END (TYPE A)
| CODE | D | L | DIA-d | D1 | L1 |
|---|---|---|---|---|---|
| SEE 16 | M16X1.5 | 80 | 15 | 36 | 43 |
| SEE 18 | M18X2.5 | 80 | 15 | 36 | 43 |
| SEE 20 | M20X2.5 | 100 | 18 | 40 | 60 |
| SEE 20L | M20X2.5 | 125 | 20 | 53 | 65 |
| SEE 24 | M24X2 | 125 | 24 | 53 | 65 |

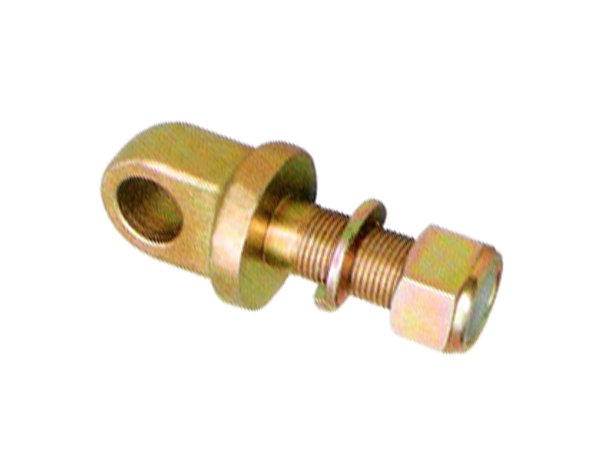

EYE END (TYPE B)
| CODE | D | L | DIA-d | D1 | L1 |
|---|---|---|---|---|---|
| SEE 20B | M20X2.5 | 125 | 20 | 42 | 65 |
| SEE 24B | M24X2 | 125 | 24 | 42 | 65 |
Request A Quote
Complete control over products allows us to ensure our customers receive the best quality prices and service.
