Manufacturer and Exporter
Harsh Enterprises
TRACTOR, combine & agricultural parts

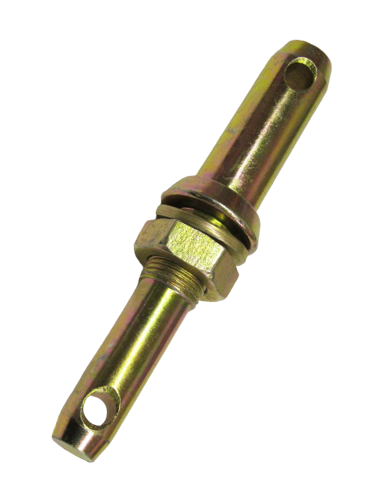

DOUBLE MOUNTING PIN / IMPLEMENT PIN
| CODE | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| HLLP2201M | 28 | 62 | 25 | 22 | 52 | 92 | 12 | M24X1.5 | 190 |
| HDMP 2802M | 28 | 58 | 25 | 22 | 48 | 90 | 12 | M24X2 | 195 |
| HDMP 2803M | 28 | 58 | 28 | 22 | 48 | 90 | 12 | M27X3 | 195 |
| HDMP 2804M | 28 | 58 | 28 | 22 | 48 | 90 | 12 | M27X1.5 | 195 |
| HDMP 2805U | 28 | 60 | 25 | 22 | 51 | 98 | 12 | 1"UNF | 203 |
| HDMP 2806U | 28.6 | 62 | 25.4 | 22 | 52 | 84 | 12 | 1"UNF | 190.5 |
| HDMP 2807U | 28.6 | 62 | 28 | 22 | 51 | 89 | 12 | 9/8"UNC | 197 |
| HDMP 2808M | 36.5 | 61 | 30 | 28 | 51 | 111 | 17/12 | M30X2 | 219 |

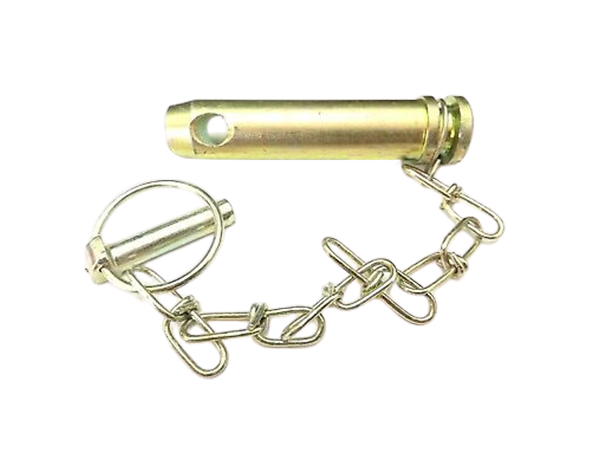

TOP LINK PIN WITH LINCH PIN
| CODE | A | B | C | D |
|---|---|---|---|---|
| HTPWL19092 | 92 | 77 | 6 | 19 |
| HTPWL19120 | 120 | 108 | 8 | 19 |
| HTPWL25120 | 120 | 108 | 8 | 25 |
| HTPWL25120-98 | 120 | 98 | 8 | 25 |

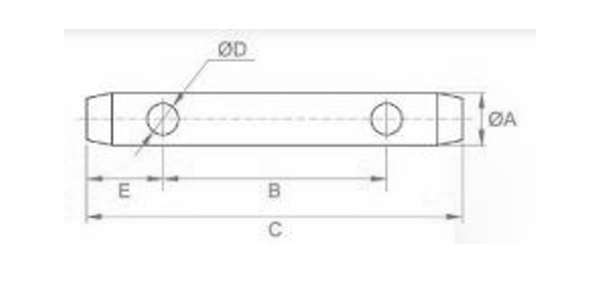

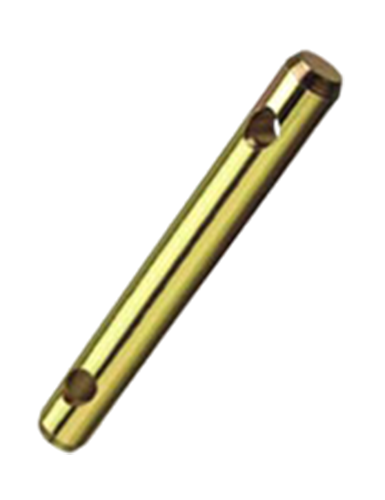

TOP LINK PIN WITHOUT HEAD
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HTLPWH19140 | 19 | 96 | 140 | 12 | 22 |
| HTLPWH19170 | 19 | 126 | 170 | 12 | 22 |
| HTLPWH19207 | 19 | 163 | 207 | 12 | 22 |
| HTLPWH19254 | 19 | 210 | 254 | 12 | 22 |
| HTLPWH25164 | 25 | 120 | 164 | 12 | 22 |

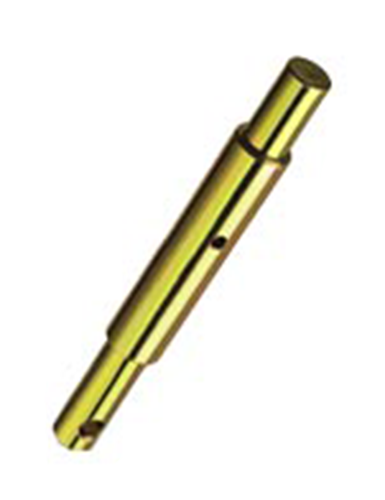

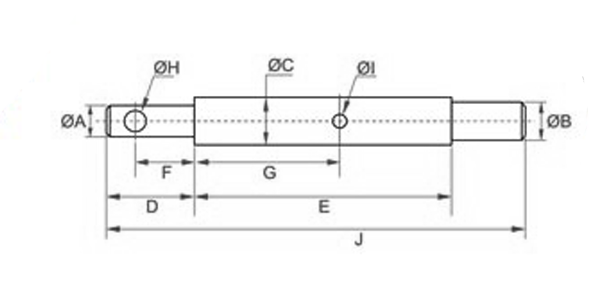

INTERCHANGEABLE IMPLEMENT MOUNTING PIN
| CODE | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| HIIMP22200 | 22 | 22 | 28 | 55 | 115 | 40 | 67 | 12 | 6.5 | 200 |
| HIIMP25200 | 25 | 22 | 28 | 55 | 115 | 40 | 67 | 12 | 6.5 | 200 |
Request A Quote
Complete control over products allows us to ensure our customers receive the best quality prices and service.
