Manufacturer and Exporter
Harsh Enterprises
TRACTOR, combine & agricultural parts

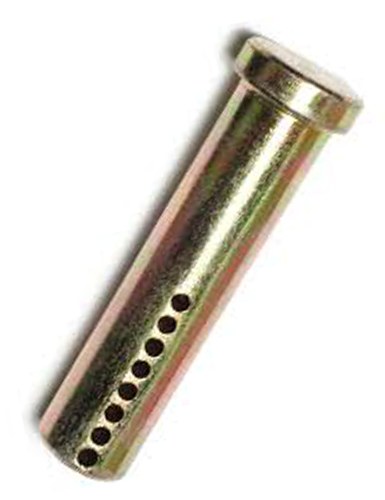

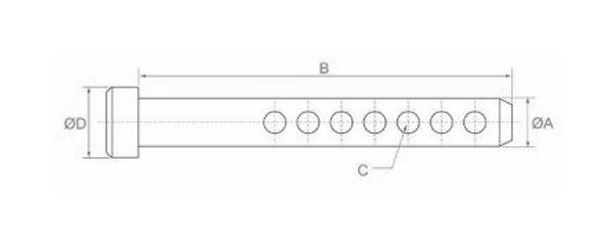

UNIVERSAL CLEVIS PINS
| CODE | A | B | C | D | NO. OF HOLES |
|---|---|---|---|---|---|
| HUPC 6050 | 6 | 50 | 2.5 | 9 | 5 |
| HUPC 8050 | 8 | 50 | 3 | 12 | 5 |
| HUPC 1050 | 10 | 50 | 4 | 14 | 5 |
| HUPC 1150 | 11 | 50 | 4 | 15 | 5 |
| HUPC 1163 | 11 | 63 | 4 | 15 | 5 |
| HUPC1176 | 11 | 76 | 4 | 15 | 7 |
| HUPC1250 | 12 | 50 | 4 | 16 | 5 |
| HUPC1263 | 12 | 63 | 4 | 16 | 7 |
| HUPC1276 | 12 | 76 | 4 | 16 | 7 |
| HUPC1676 | 16 | 76 | 5 | 20 | 7 |
| HUPC 1976 | 19 | 76 | 6 | 24 | 7 |

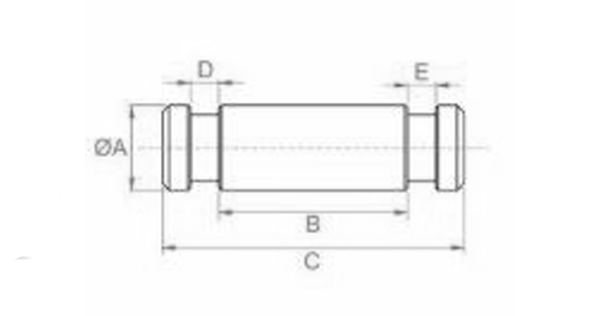

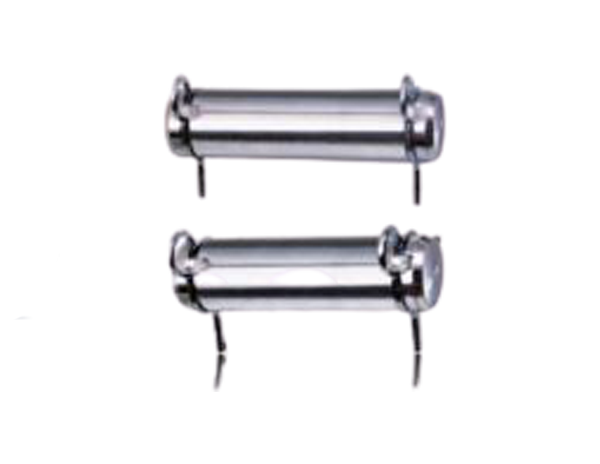

CYLINDER PIN
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HCLP 18052 | 18 | 52 | 70 | 6 | 6 |
| HCLP 18072 | 18 | 72 | 90 | 6 | 6 |
| HCLP 18082 | 18 | 82 | 100 | 6 | 6 |
| HCLP 20058 | 20 | 58 | 76 | 6 | 6 |
| HCLP 22052 | 22 | 52 | 70 | 6 | 6 |
| HCLP 24091 | 24 | 91 | 109 | 6 | 6 |
| HCLP 26057 | 26 | 57 | 76 | 6 | 6 |
| HCLP 28091 | 28 | 91 | 109 | 6 | 6 |

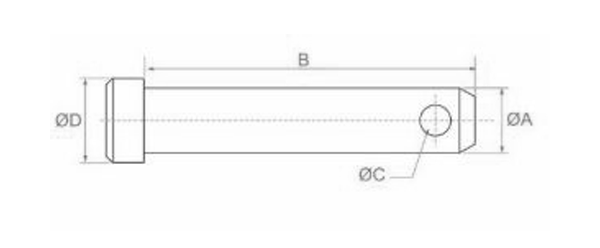

STANDARD CLEVIS PINS
| CODE | A | B | C | D |
|---|---|---|---|---|
| HSCP4516 | 4.5 | 16 | 2.5 | 9 |
| HSCP6020 | 6 | 20 | 2.5 | 10 |
| HSCP6025 | 6 | 25 | 2.5 | 10 |
| HSCP8019 | 8 | 19 | 3 | 12 |
| HSCP8024 | 8 | 24 | 3 | 12 |
| HSCP8028 | 8 | 28 | 3 | 12 |
| HSCP8032 | 8 | 32 | 3 | 12 |
| HSCP8038 | 8 | 38 | 3 | 12 |
| HSCP8045 | 8 | 45 | 3 | 12 |
| HSCP1025 | 10 | 25 | 4 | 12 |
| HSCP1032 | 10 | 32 | 4 | 14 |
| HSCP1045 | 10 | 45 | 4 | 14 |
| HSCP1132 | 11 | 32 | 4 | 15 |
| HSCP1145 | 11 | 45 | 4 | 15 |
| HSCP1238 | 12 | 38 | 4 | 16 |
| HSCP1250 | 12 | 50 | 4 | 16 |
Request A Quote
Complete control over products allows us to ensure our customers receive the best quality prices and service.
