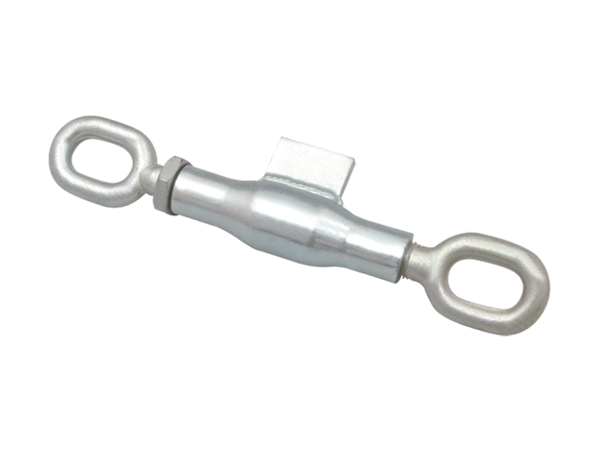

STABILIZER ASSEMBLY (REPLACES MTZ BELARUS)
| CODE | A Min / Max. |
B | C | D | E |
|---|---|---|---|---|---|
| HSA 16 | 245 / 315 | 130 | M16X2 | 38 | 15 |
| HSA 18 | 245 / 320 | 135 | M18X2.5 | 38 | 15 |
| HSA 20 | 280 / 350 | 130 | M20X2.5 | 38 | 15 |
| HSA 22 | 280 / 350 | 150 | M22X2.5 | 38 | 15 |
| HSA 24 | 300 / 370 | 150 | M24X2.5 | 55 | 25 |
| HA 25 HEAVY | 300 / 370 | 150 | M24X2.5 | 55 | 25 |

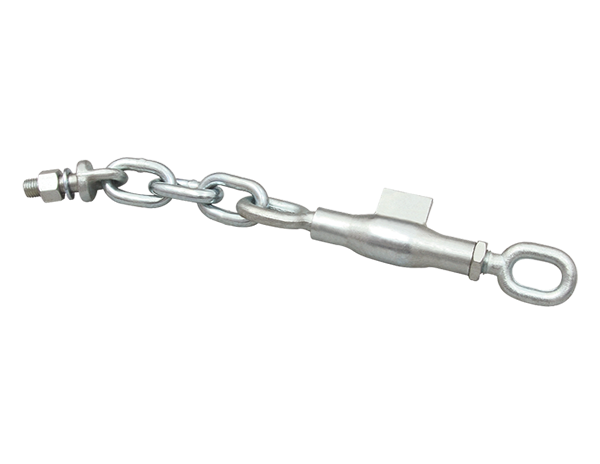

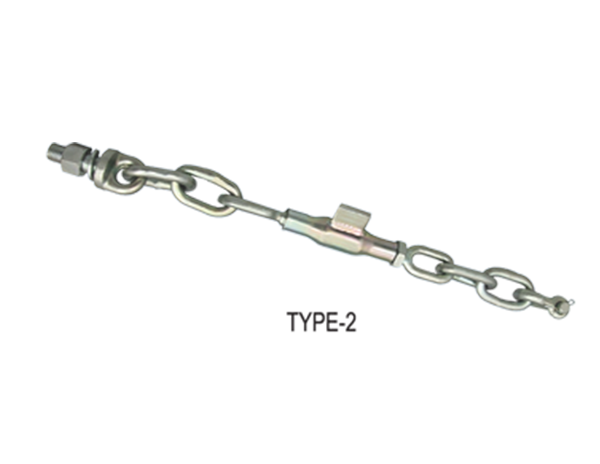

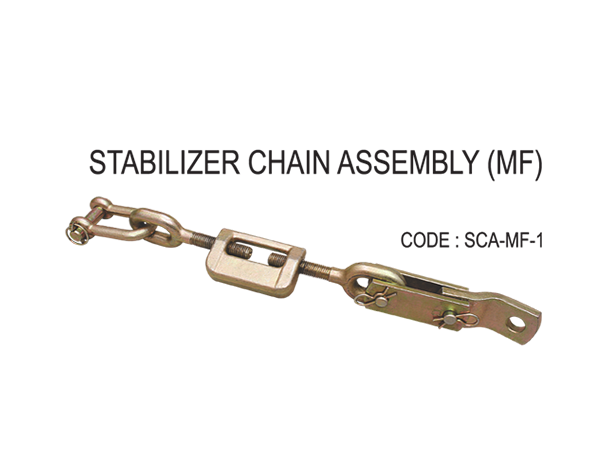

STABILIZER CHAIN ASSEMBLY
| CODE | TYPE | L-MIN | THREAD D |
D1 | D2 | D3 | NO. OF LINKS |
|---|---|---|---|---|---|---|---|
| HSCA01 | 1 | 430 | 16X2 | 18X2.5 | 12 | 12 | 2+2 |
| HSCA02 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 12 | 1+1 |
| HSCA03 | 1 | 520 | 16X2 | 18X2.5 | 12 | 12 | 3+3 |
| HSCA04 | 1 | 450 | 16X2 | 22X1.5 | 14-D | 12 | 2+1 |
| HSCA05 | 1 | 430 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| HSCA06 | 1 | 570 | 16X2 | 18X2.5 | 12 | 12 | 3+4 |
| HSCA07 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| HSCA08 | 2 | 445 | 20X2.5 | 20X2.5 | 12 | 12 | 1+1 |
| HSCA09 | 2 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |
| HSCA10 | 2 | 690 | 20X2.5 | 20X2.5 | 14 | 12 | 3+3 |
| HSCA11 | 2 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| HSCA12 | 2 | 500 | 20X2.5 | 24X2.0 | 16 | 14 | 1+2 |
| HSCA13 | 3 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| HSCA14 | 3 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |
| CODE | A | B | C | D | NO. OF LINKS |
|---|---|---|---|---|---|
| HSCA-B1 | 400 | M22X2.5 | M20X2.5 | 14 | 1 |
| HSCA-B2 | 480 | M22X2.5 | M20X2.5 | 14 | 3 |
| HSCA-B3 | 580 | M22X2.5 | M20X2.5 | 14 | 5 |
| HSCA-B4 | 680 | M22X2.5 | M20X2.5 | 14 | 7 |
| HSCA-B5 | 400 | M24X2.5 | M20X2.5 | 14 | 1 |
| HSCA-B6 | 480 | M24X2.5 | M20X2.5 | 14 | 3 |
| HSCA-B7 | 580 | M24X2.5 | M20X2.5 | 14 | 5 |
| HSCA-B8 | 680 | M24X2.5 | M20X2.5 | 14 | 7 |
SIDE CHAIN LINK
| CODE | TYPE | THREAD | D1 | D2 | NO. OF LINKS |
|---|---|---|---|---|---|
| D | |||||
| HSCL01 | 1 | M16X2 RH | 12 | 12 | 3 |
| HSCL02 | 1 | M16X2 RH | 12 | 12 | 4 |
| HSCL03 | 1 | M16X2 LH | 14-D | 12 | 1 |
| HSCL04 | 1 | M16X2 LH | 14-D | 14 | 1 |
| HSCL05 | 2 | M16X2 RH | M22X1.5 | 12 | 1 |
| HSCL06 | 2 | M16X2 RH | M22X1.5 | 14 | 1 |
| HSCL07 | 2 | M16X2 LH | M18X1.5 | 12 | 3 |
| HSCL08 | 2 | M16X2 RH | M18X1.5 | 12 | 2 |
