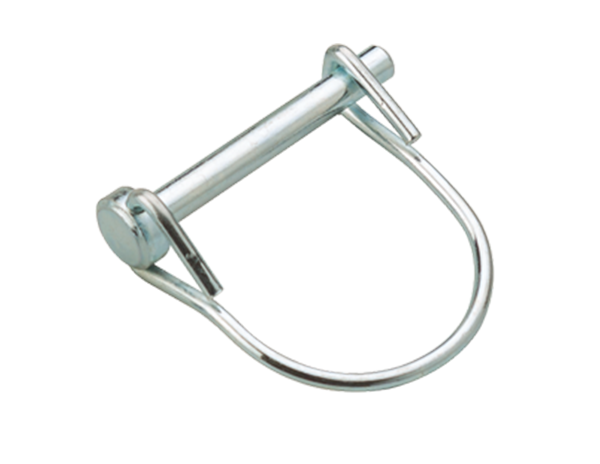

SNAPPER PIN SINGLE WIRE (ROUND)
| CODE | A | B | C | D |
|---|---|---|---|---|
| HSPR-1/4-1.750 | 1/4" | 2.000" | 1.750" | 1.625" |
| HSPR-5/16-1.750 | 5/16" | 2.000" | 1.750" | 1.750" |
| HSPR-3/8-1.750 | 3/8" | 2.000" | 1.750" | 1.500" |

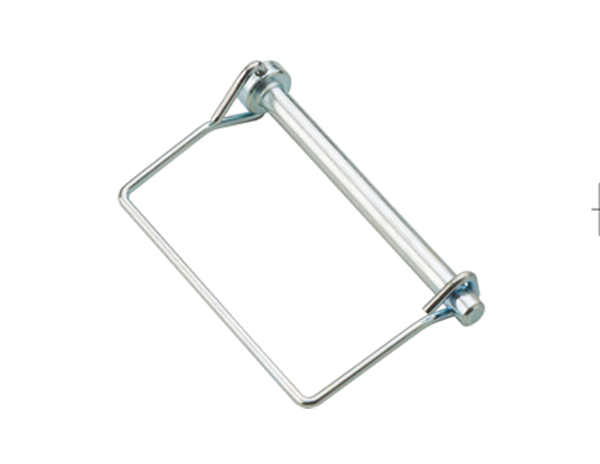

SNAPPER PIN SINGLE WIRE (SQUARE)
| CODE | A | B | C | D |
|---|---|---|---|---|
| HSPS-1/4-2.500 | 1/4" | 2.750" | 2.500" | 1.625" |
| HSPS-5/16-2.500 | 5/16" | 2.750" | 2.500" | 1.750" |
| HSPS-5/16-3.500 | 5/16" | 3.750" | 3.500" | 1.750" |
| HSPS-3/8-2.250 | 3/8" | 2.500" | 2.250" | 1.500" |
| HSPS-3/8-2.500 | 3/8" | 2.750" | 2.500" | 1.500" |
| HSPS-3/8-3.000 | 3/8" | 3.250" | 3.000" | 1.500" |

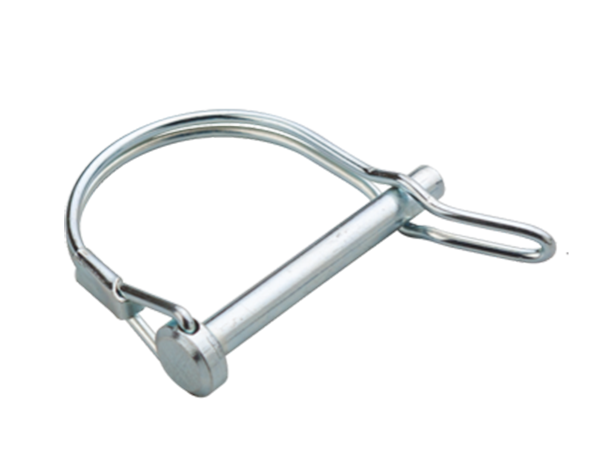

TAB LOCK PIN SINGLE WIRE (ROUND OR SQUARE)
| CODE | A | B | C | D | HANDLE TYPE |
|---|---|---|---|---|---|
| HTLPR-1/4-1.750D | 1/4" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPR-5/16-1.750D | 5/16" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPR-3/8-1.750D | 3/8" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPS-3/8-2.250D | 3/8" | 2.750" | 2.250" | 1.500" | SQUARE |

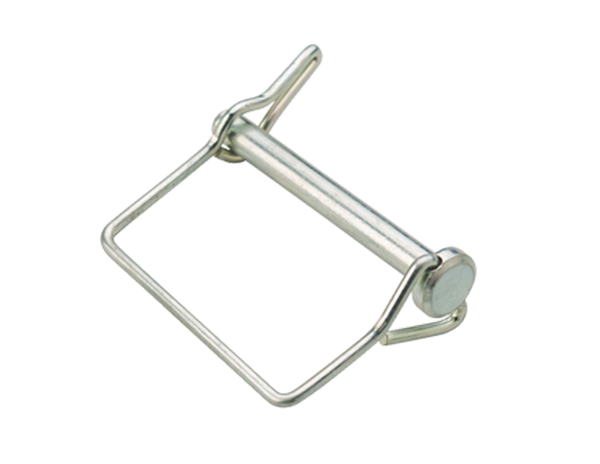

TAB LOCK PIN DOUBLE WIRE
| CODE | A | B | C | D | HANDLE TYPE |
|---|---|---|---|---|---|
| HTLPR-1/4-1.750S | 1/4" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPR-5/16-1.750S | 5/16" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPR-3/8-1.750S | 3/8" | 2.000" | 1.750" | 1.500" | ROUND |
| HTLPS-1/4-2.500S | 1/4" | 2.750" | 2.500" | 1.500" | SQUARE |
| HTLPS-5/16-2.500S | 5/16" | 2.750" | 2.500" | 1.500" | SQUARE |
| HTLPS-3/8-2.500S | 3/8" | 2.750" | 2.500" | 1.500" | SQUARE |

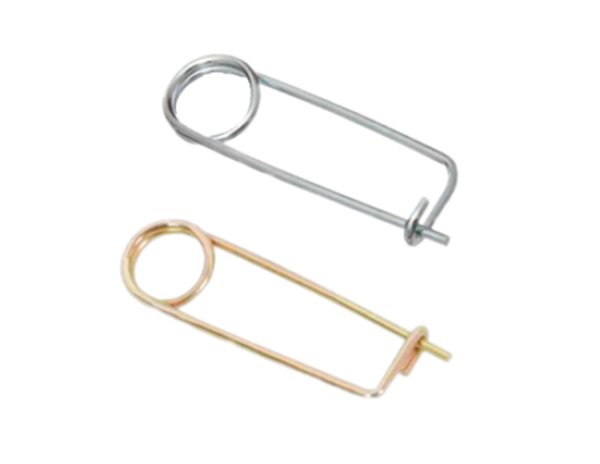

SPRING PIN
| CODE | A | B | C | D |
|---|---|---|---|---|
| HSP3 | 3 | 60 | 20 | 35 |
| HSP4 | 4 | 100 | 33 | 55 |
| HSP5 | 5 | 90 | 31 | 42 |
| HSP6 | 6 | 100 | 30 | 50 |
