TRACTOR, combine & agricultural parts

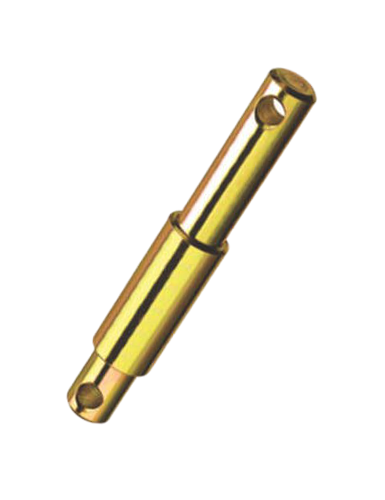

DOUBLE IMPLEMENT MOUNTING PIN

CODE A B C D E F G H I J
HDIMP25210 25 19 40 70 100 80 20 12 12 210
HDIMP25212 25 19 38 96 78 62 22 12 12 212
HDIMP25170 25 19 26 66 78 70 18 6.5 6.5 170
HDIMP28200 28 22 35 75 90 75 20 12 12 200
HDIMP28210 28 22 40 70 100 80 20 12 12 210
HDIMP28230 28 22 40 90 100 80 20 12 12 230
HDIMP28229 28.6 22.2 40 89 100 80 20 12 12 229
HDIMP32250 32 25 40 115 95 81 26 12 12 250
HDIMP36277 36.5 28 36 150 91 81 26 12 12 277
HDIMP36290 36.5 28 45 150 95 80 28 12 12 290

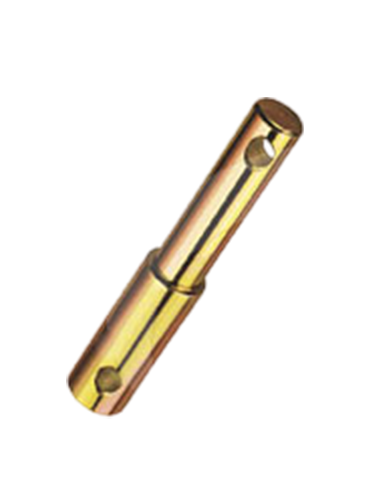

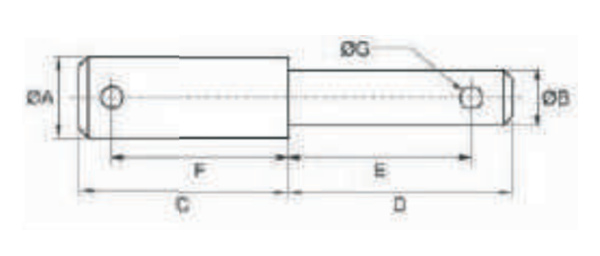

WELD ON END MOUNTING PIN

CODE A B C D E F G
HWOMP 01 28 22 62.5 84.5 70.5 47 12
HWOMP 02 28 22 76.5 104.5 88 60 12
HWOMP 03 28 22 85 105 85 62 12
HWOMP 04 28 22 103 78 60 87.3 12
HWOMP 05 28 22 120 56 39 92 12
HWOMP 06 28.6 22 76 105 87.3 60 12
HWOMP 07 34 28 61 80 62 43.5 12

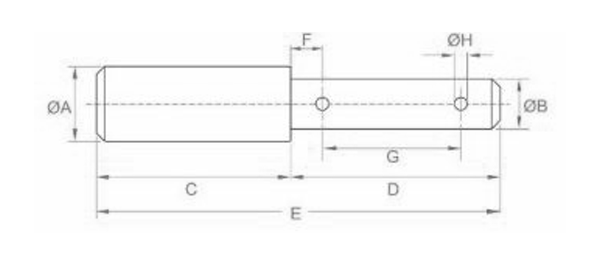

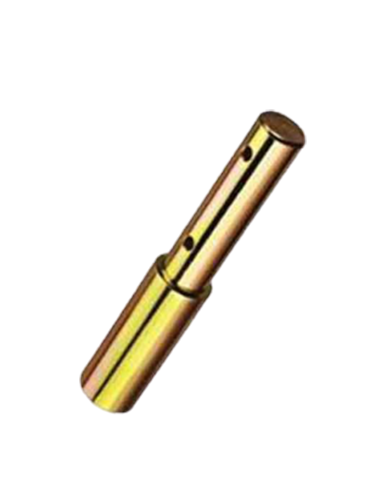

IMPLEMENT PIN

CODE A B C D E 80F G H
HDMP 19156 19 16 74 82 156 16.5 55 5
HDMP 22168 22 16 80 88 168 12 68 5
HDMP 25166 25 19 85 81 166 18 53 5
HDMP 25160 25 19 80 80 160 18 53 5
HDMP 25180 25 19 90 90 180 18 57 5
HDMP 28180 28 22 90 90 180 18 57 5
HDMP 28175 28 22 90 85 175 16.5 50 6
HDMP 28180 28 22 90 90 180 16.5 61 6
HDMP 32178 32 25 83 95 178 18 62 6.5
HDMP 32172 32 25 80 92 172 22 55 6.5
