Manufacturer and Exporter

Harsh Enterprises

TRACTOR, combine & agricultural parts

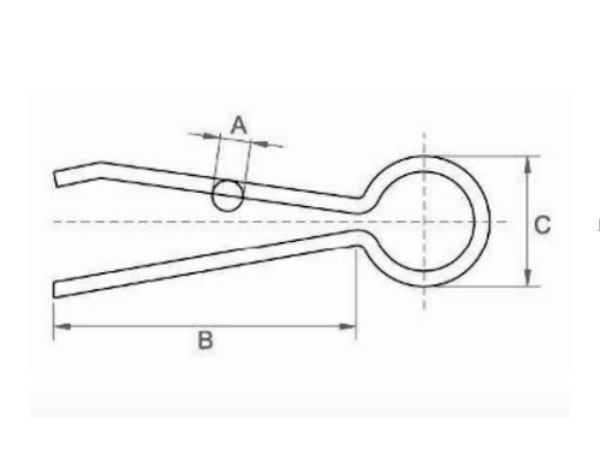

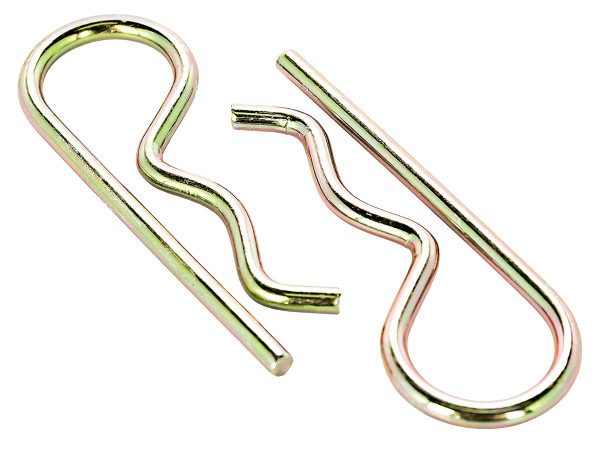

HAIR PIN/CLIPS

CODE A B C
HHP31538 3X1.5 38 17
HHP52556 5X2.5 56 27

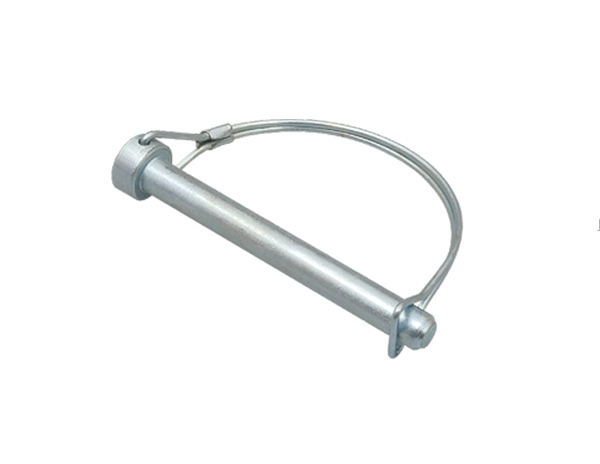

SHAFT LOCKING PIN/PTO PIN (ROUND)

CODE A B C D E F
HLPR650 6 60 50 12 6 2.3
HLPR657 6 67 57 12 6 2.3
HLPR838 8 45 38 15 7 2.3
HLPR860 8 70 60 15 7 2.3
HLPR9557 9.5 67 57 16 7.5 2.3
HLPR1038 10 45 38 15 7 2.3
HLPR1060 10 70 60 15 8.5 2.3
HLPR1189 11 99 89 19 10 2.3
HLPR1260 12 70 60 18 7 2.3
HLPR1265 12 75 65 18 7 2.3
HLPR1270 12 90 70 18 7 2.3
HLPR1294 12 110 94 22 10 2.3

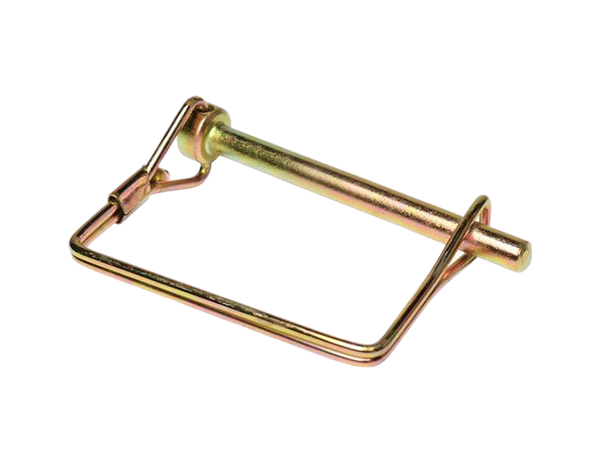

SHAFT LOCKING PIN / PTO PIN (SQUARE)

CODE A B C D E F
HSLPS4538 4.5 46 38 10 5 2.3
HSLPS657 6 67 57 12 6 2.3
HSLPS863 8 70 63 15 7 2.3
HSLPS1080 10 90 80 18 8 2.3
HSLPS1267 12 75 67 20 10 2.3

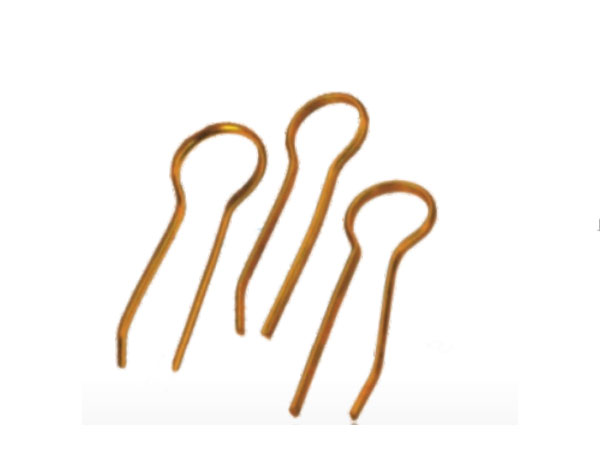

HAIR PIN

CODE A B C D
HHP 20044 2 44 11 12-Oct
HHP 20051 2 51 10 12-Oct
HHP 20059 2 59 13 12-Oct
HHP 25046 2.5 46 10 13-Nov
HHP 25062 2.5 62 14 13-Nov
HHP 30052 3 52 13 16-Dec
HHP 30065 3 65 13 16-Dec
HHP 30070 3 70 13 16-Dec
HHP 35071 3.5 71 18 16-30
HHP 35084 3.5 84 18 16-30
HHP 40076 4 76 18 16-30
HHP 40088 4 88 18 16-30
HHP 40108 4 108 26 14-20
HHP 45093 45 93 20 16-30
HHP 50100 5 100 24 20-35
HHP 50106 5 106 24 20-35
HHP 50116 5 116 24 20-35
HHP 60103 6 103 30 28-45
HHP 60114 6 114 30 28-45
HHP 60120 6 120 30 28-45
HHP 60130 6 130 36 28-45
HHP 70115 7 115 25 25-38
HHP 70163 7 163 30 30-45
HHP 80105 8 105 52 40-45
HHP 80156 8 156 40 30-35
HHP 80187 8 187 40 45-60
HHP 90162 9 162 40 45-60
HHP 100162 10 162 40 45-60

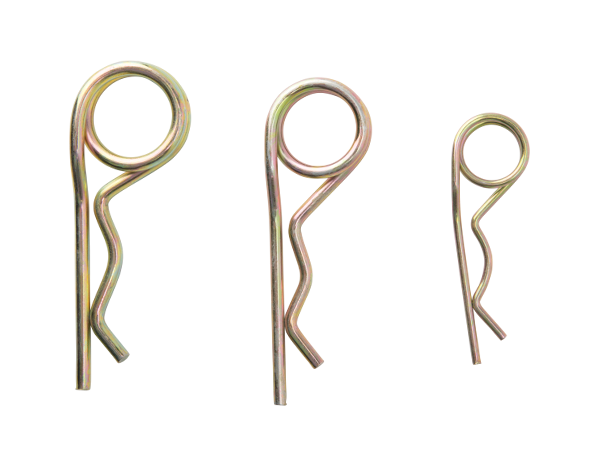

HAIR PIN DOUBLE

CODE A B C D
HHPD2065 2 65 9 10-12
HHPD3071 3 71 15 12-16
HHPD4077 4 77 18 16-30
HHPD4093 4 93 22 17-24
HHPD5108 5 108 24 17-24
HHPD5116 5 116 22 17-24
HHPD6120 6 120 30 28-42
HHPD6143 6 143 30 28-42
HHPD7162 7 162 30 30-45
HHPD8155 8 155 30 45-60
HHPD8162 8 162 45 45-60

HAIR PIN (LONG LEG)

CODE A B C D
SHP 05200 5 200 22 20-35

HAIR PIN (DOUBLE SPRING)

CODE A B C D
SHPD5200 5 200 22 25-32

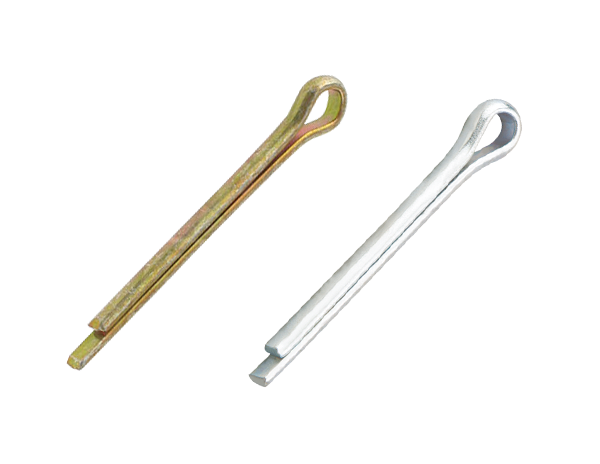

SPLIT PIN

CODE A B
HSP1620 1.6 20
HSP2020 2 20
HSP2025 2 25
HSP2028 2 28
HSP2032 2 32
HSP2040 2 40
HSP2520 2.5 20
HSP2525 2.5 25
HSP2532 2.5 32
HSP2540 2.5 40
HSP3220 3.2 20
HSP3225 3.2 25
HSP3232 3.2 32
HSP3235 3.2 35
HSP3240 3.2 40
HSP3250 3.2 50
HSP4025 4 25
HSP4032 4 32
HSP4036 4 36
HSP4040 4 40
HSP4050 4 50
HSP4063 4 63
HSP4070 4 70
HSP4080 4 80
HSP5032 5 32
HSP5040 5 40
HSP5050 5 50
HSP5063 5 63
HSP5070 5 70
HSP5080 5 80
HSP5090 5 90
HSP6332 6.3 32
HSP6340 6.3 40
HSP6350 6.3 50
HSP6363 6.3 63
HSP6370 6.3 70
HSP6380 6.3 80
HSP63100 6.3 100
HSP7050 7 50
HSP7060 7 60
HSP7070 7 70
HSP7080 7 80
HSP8040 8 40
HSP8050 8 50
SP8063 8 63
HSP8071 8 71
HSP8080 8 80
HSP8090 8 90
HSP80100 8 100
HSP80125 8 125
HSP10050 10 50
HSP1063 10 63
HSP10080 10 80
SP10100 10 100
SP10125 10 125
HSP13125 13 125
HSP13140 13 140
