Manufacturer and Exporter
Harsh Enterprises
TRACTOR, combine & agricultural parts

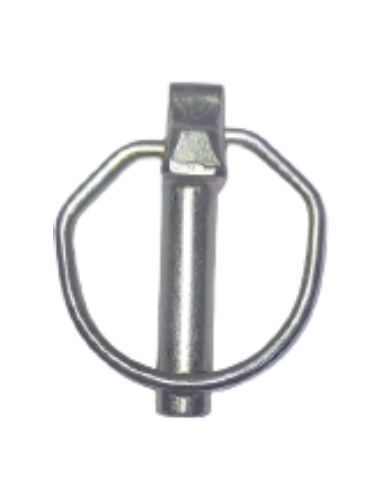

LINCH PIN
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HLP 4535 | 4.5 | 28.6 | 35 | 45 | 3 |
| HLP 4540 | 4.5 | 33 | 40 | 48 | 3 |
| HLP 0645 | 6 | 36.5 | 45 | 54 | 3.2 |
| HLP 0670 | 6 | 60 | 70 | 80 | 3.5 |
| HLP 0745 | 7 | 36.5 | 45 | 55 | 3.3 |
| HLP 0845 | 8 | 36.5 | 45 | 54 | 3.3 |
| HLP 0870 | 8 | 60 | 70 | 80 | 3.5 |
| HLP 0945 | 9 | 36.5 | 45 | 56 | 3.3 |
| HLP 1045 | 10 | 36.5 | 45 | 56 | 3.5 |
| HLP 1051 | 10 | 42 | 51 | 62 | 3.5 |
| HLP 1145 | 11 | 36.5 | 45 | 56 | 3.5 |
| HLP 1151 | 11 | 39 | 51 | 61 | 3.5 |
| HLP 1245 | 12 | 36.5 | 45 | 56 | 3.5 |

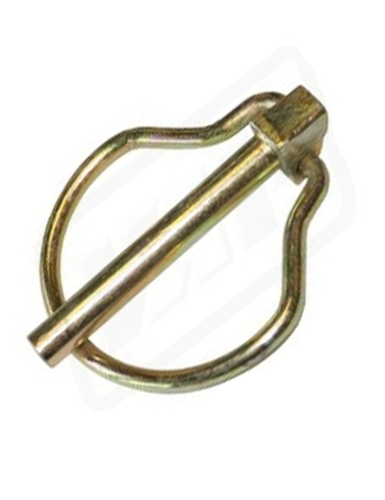

LINCH PIN PEAR TYPE
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HLPPR 0645 | 6 | 36 | 45 | 54 | 3.2 |
| HLPPR 0845 | 8 | 36 | 45 | 54 | 3.2 |
| HLPPR 1045 | 10 | 36 | 45 | 56 | 3.2 |
| HLPPR 1145 | 11 | 36 | 45 | 56 | 3.2 |

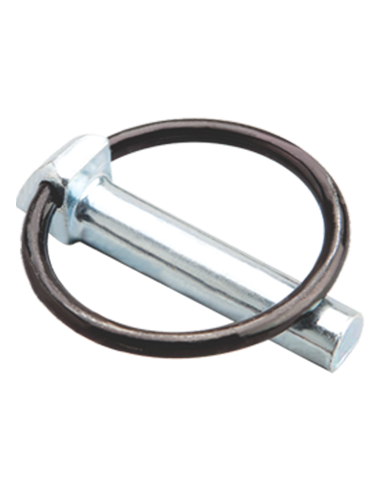

LINCH PIN BLACKRING HEAVY DUTY
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HLP 0645 HD | 6 | 36.5 | 45 | 54 | 3.5 BLK |
| HLP 1151 HD | 11 | 39 | 51 | 61 | 4.5 BLK |

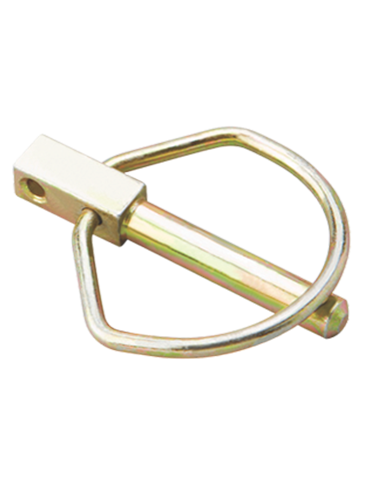

LINCH PIN DIN 11024
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HLP 4532 | 4.5 | 32 | 25 | 31 | 2.5 |
| HLP 5542 | 5.5 | 42 | 32 | 44.8 | 3.6 |
| HLP 7542 | 7.5 | 42 | 32 | 44.8 | 3.6 |
| HLP 9545 | 9.5 | 45 | 32 | 44.8 | 3.6 |
| HLP 1145 | 11 | 45 | 32 | 44.8 | 3.6 |
| HLP 1155 | 11 | 55 | 45 | 52 | 4 |
| HLP 1660 | 16 | 60 | 45 | 52 | 4 |
LINCH PIN DIN 11024
| CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| HLP 4532 | 4.5 | 32 | 25 | 31 | 2.5 |
| HLP 5542 | 5.5 | 42 | 32 | 44.8 | 3.6 |
| HLP 7542 | 7.5 | 42 | 32 | 44.8 | 3.6 |
| HLP 9545 | 9.5 | 45 | 32 | 44.8 | 3.6 |
| HLP 1145 | 11 | 45 | 32 | 44.8 | 3.6 |
| HLP 1155 | 11 | 55 | 45 | 52 | 4 |
| HLP 1660 | 16 | 60 | 45 | 52 | 4 |
Request A Quote
