TRACTOR, combine & agricultural parts

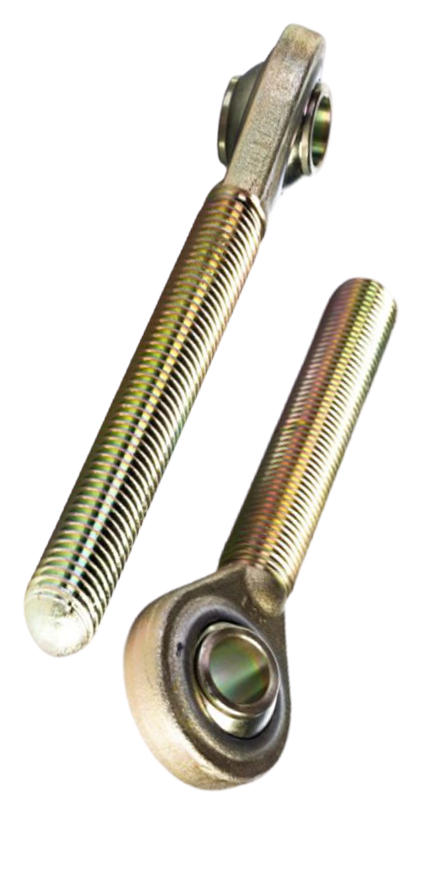

CODE	CAT	I.D.	THREAD D	L1	D1	D2	H
HTLE R 105 0 U	0	16	3/4" UNC R	105	47	30	25.4
HTLE L 105 0 U	0	16	3/4" UNC L	105	47	30	25.4
HTLE R 150 1U	1	19	1.1/8" UNC R	150	58	53	44
HTLE L 150 1 U	1	19	1.1/8" UNC L	150	58	53	44
HTLE R 180 2 U	2	25.4	1.1/8" UNC R	180	66	55	51
HTLE L 180 2 U	2	25.4	1.1/8" UNC L	180	66	55	51
HTLE R 180 2 U	2	25.4	1.1/4" UNC R	180	76	62	51
HTLE L 180 2 U	2	25.4	1.1/4" UNC L	180	76	62	51
HTLE R 185 3 U	3	32	1.3/8" UNC R	185	96	70	51
HTLE L 185 3 U	3	32	1.3/8" UNC L	185	96	70	51

CODE	CAT	I.D.	THREAD D	L1	D1	D2	H
HTLE R 105 0 U	0	16	3/4" UNC R	105	47	30	25.4
HTLE L 105 0 U	0	16	3/4" UNC L	105	47	30	25.4
HTLE R 150 1U	1	19	1.1/8" UNC R	150	58	53	44
HTLE L 150 1 U	1	19	1.1/8" UNC L	150	58	53	44
HTLE R 180 2 U	2	25.4	1.1/8" UNC R	180	66	55	51
HTLE L 180 2 U	2	25.4	1.1/8" UNC L	180	66	55	51
HTLE R 180 2 U	2	25.4	1.1/4" UNC R	180	76	62	51
HTLE L 180 2 U	2	25.4	1.1/4" UNC L	180	76	62	51
HTLE R 185 3 U	3	32	1.3/8" UNC R	185	96	70	51
HTLE L 185 3 U	3	32	1.3/8" UNC L	185	96	70	51

CODE	CAT	I.D.	THREAD	L1	D1	D2	H
			D
HTLE RF L1	1	19	1.1/4"UNC L	135	58	208	44
HTLE RF L2	2	25.4	1.1/4"UNC L	135	76	208	51
HTLE RF R1	1	19	1.1/4"UNC R	168	76	85	44
HTLE RF R2	2	25.4	1.1/4"UNC R	168	76	85	51

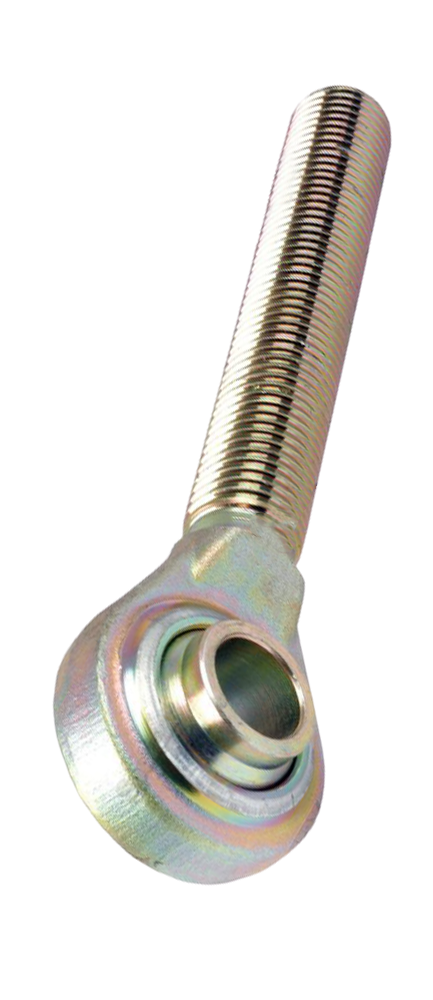

TOP LINK END (METRIC)

CODE	CAT	I.D.	THREAD D	L1	D1	D2	H
HTLE 2025 0 R	0	16	M20X2.5R	85	48	40	25.4
HTLE 2025 0 L	0	16	M20X2.5L	85	48	40	25.4
HTLE2225 1 R	1	19	M22X2.5R	95	58	50	44
HTLE2225 0 L	1	19	M22X2.5L	95	58	50	44
HTLE2225 1 R (B)	1	19	M22X2.5R	105	58	50	44
HTLE2225 1 L (B)	1	19	M22X2.5L	105	58	50	44
HTLE2425 1 R	1	19	M24X2.5R	115	58	50	44
HTLE2425 1 L	1	19	M24X2.5L	115	58	50	44
HTLE2430 1 R	1	19	M24X3 R	115	58	50	44
HTLE2430 1 L	1	19	M24X3 L	115	58	50	44
HTLE2430 1 R (B)	1	19	M24X3 R	155	62	50	44
HTLE2430 1L (B)	1	19	M24X3 L	155	62	50	44
HTLE2430 2 R	2	25.4	M24X3 R	165	75	55	51
HTLE2430 2 L	2	25.4	M24X3 L	165	75	55	51
HTLE2730 1 R	1	19	M27X3 R	150	58	50	44
HTLE2730 1 L	1	19	M27X3 L	150	58	50	44
HTLE2730 2 R (B)	2	25.4	M27X3 R	165	66	55	51
HTLE2730 2 L (B)	2	25.4	M27X3 L	165	66	55	51
HTLE 3030 1 R	1	19	M30X3 R	155	58	50	44
HTLE3030 1 L	1	19	M30X3 L	155	58	50	44
HTLE3035 1 R	1	19	M30X3.5 R	155	58	50	44
HTLE3035 1 L	1	19	M30X3.5 L	155	58	50	44
HTLE3030 2 R	2	25.4	M30X3 R	165	75	55	51
HTLE3030 2 L	2	25.4	M30X3 L	165	75	55	51
HTLE3035 2 R	2	25.4	M30X3.5 R	165	75	55	51
HTLE3035 2 L	2	25.4	M30X3.5 L	165	75	55	51
HTLE3630 2 R	2	25.4	M36X3 R	165	80	55	51
HTLE3630 2 L	2	25.4	M36X3 L	165	80	55	51
HTLE3630 2 R (B)	2	25.4	M36X3 R	175	80	55	51
HTLE3630 2 L (B)	2	25.4	M36X3 L	175	80	55	51
HTLE3630 2 R	2	25.4	M36X3 R	200	96	70	51
HTLE3630 2 L	2	25.4	M36X3 L	200	96	70	51
HTLE3630 3 R	3	32	M36X3 R	200	96	70	51
HTLE3630 3 L	3	32	M36X3 L	200	96	70	51
HTLE4030 2R	2	25.4	M40X3 R	170	80	60	51
HTLE4030 2L	2	25.4	M40X3 L	170	80	60	51
